For the last four years of SAE competition, UVic Formula Motorsport team has been using 3D printed oil pans that were purposely engineered to be manufactured by CRP USA‘s laser sintering 3d printing process and Windform® TOP-LINE SLS composite materials.
The oil pans for the 2016, 2017 and 2018 vehicle were printed using Carbon-composite material Windform® XT 2.0.
It worked “amazingly” (verbatim) on the 2016 and 2017 race car as the 3D printed oil pans allowed UVic team to significantly lower the engine, and thus decrease the vehicles overall centre of gravity improving the performance of the car.
The use of laser sintering technology also allowed UVic Formula Motorsport team to create a more complex geometry due to the ease in manufacturability. This allowed team to incorporate baffles within the pan to get rid of the possibility of oil starvation during cornering.

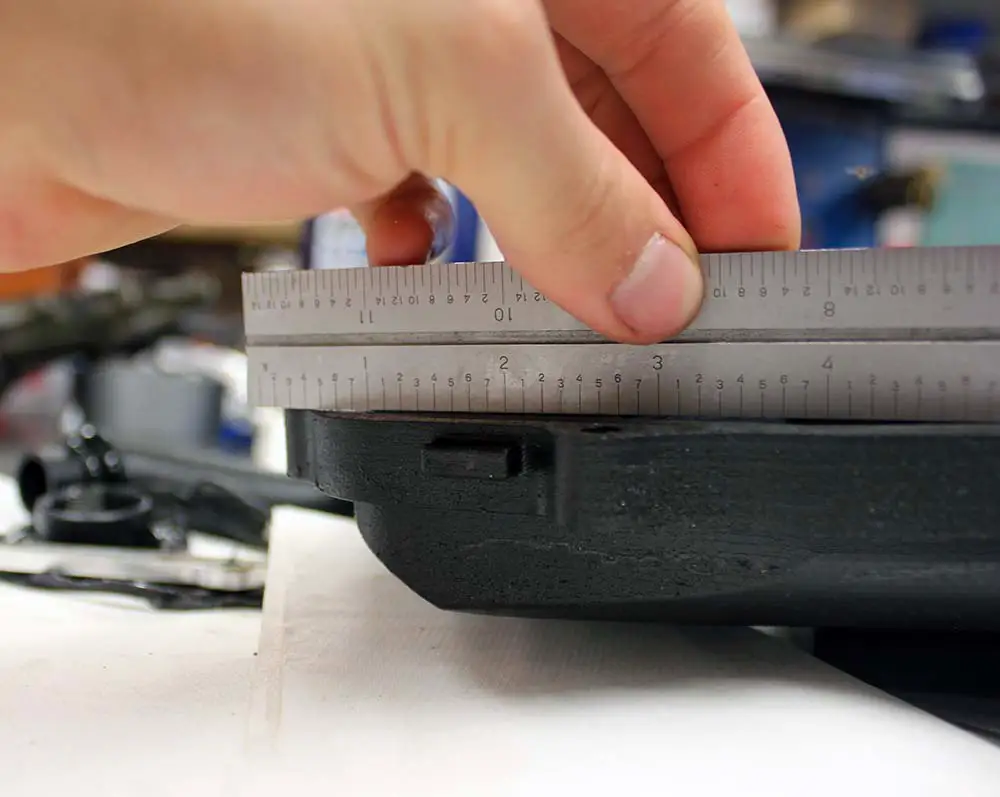

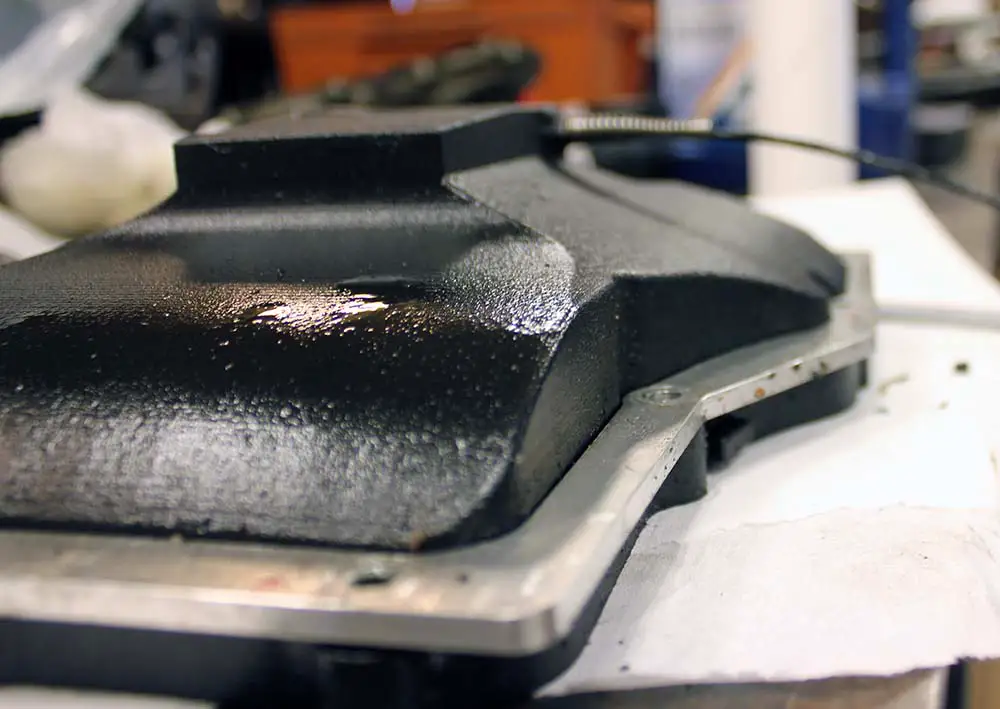

However, during a test day with their 2018 vehicle, the engine overheated causing the oil temperature to increase beyond the limits of the designed pan. During the post inspection it was found that any thin walled surfaces deformed quiet significantly, meaning that the baffle walls of the pan were significantly warped, and one of the sections of the mating flange had been pulled into the pan creating a significant leak.

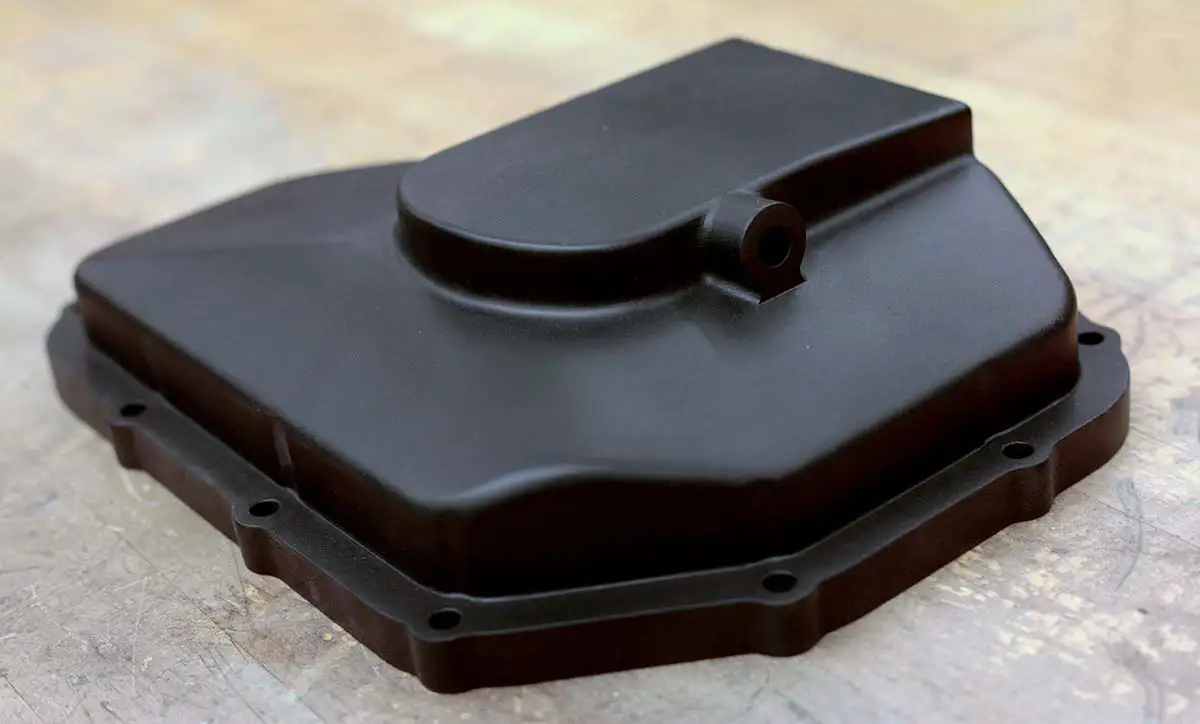

The team decided to re-evaluate all of the Windform® TOP-LINE range of high performance SLS materials available from CRP USA for the 2019 vehicle, and chose to go with Carbon-filled Windform® SP composite material due to its higher melting point as compared to Windform® XT 2.0. However, to also decrease the chances of having a failure during a test day – or worse at competition – the team increased the thickness of the mating flange to allow for a large amount of surface area for an aluminum pressure flange.

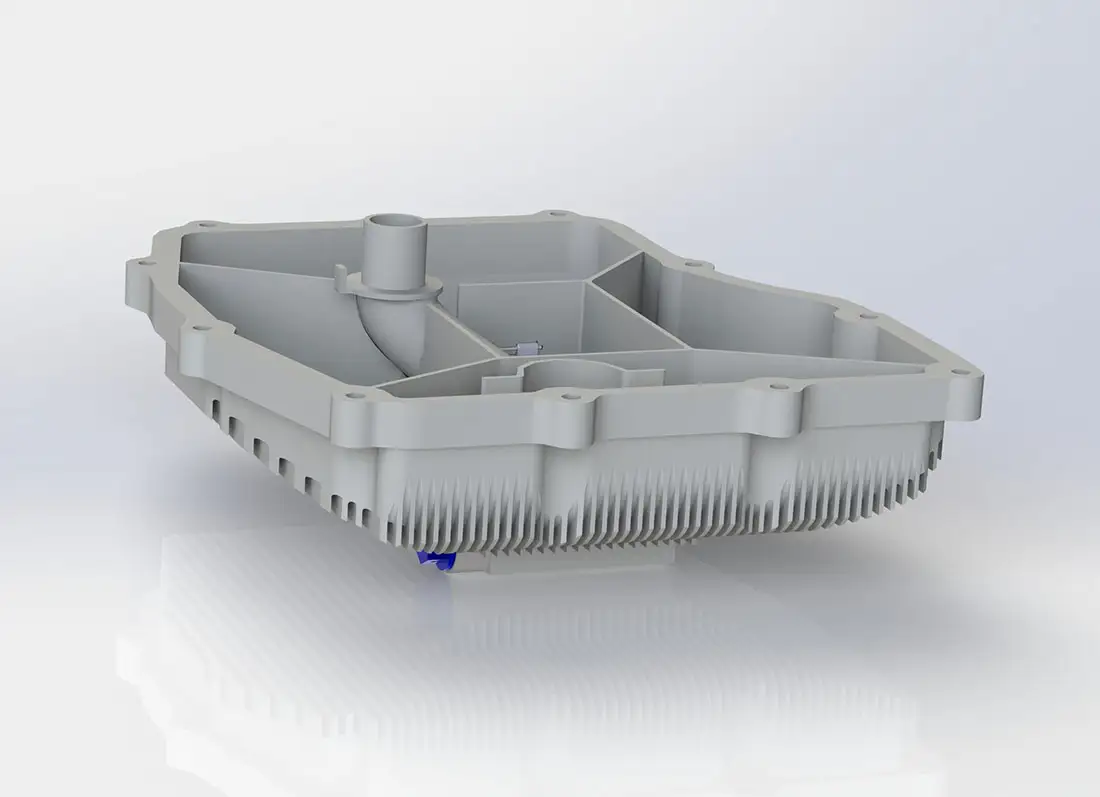

To solve the problem of the baffle walls warping due to the high heat, UVic Formula Motorsport team decreased them to just one central one located around the oil pickup as well as adding a large supporting ridge, to the top of the wall to limit the need to thicken the entire wall.
The changes resulted in a more robust oil pan.
3D printed Intake manifold

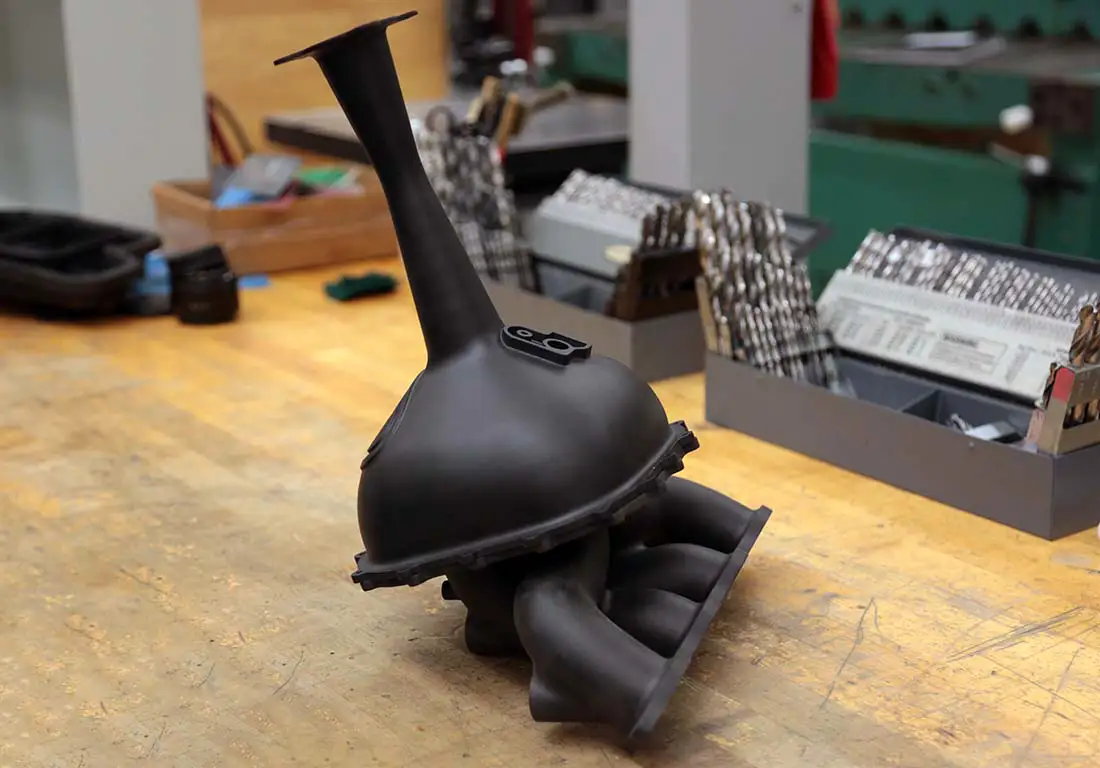

The intake manifold is another component CRP USA has produced for UVic since the UV16 car, mirroring the material progression of the oil pan: Windform® XT 2.0 from UV16 through UV18, then Windform® SP from 2019 onwards.
Formula SAE regulations require a 20 mm restrictor at the intake inlet – a bottleneck that caps engine power for the safety of drivers and on-track personnel. To extract maximum performance within that constraint, the team optimizes the manifold geometry through engine simulation software. SLS 3D printing and Windform® composites widen the design envelope well beyond what welding or machining would allow: more compact and complex geometries, lightweight and rigid parts, with wall thicknesses between just 2.5 and 3.0 mm.
Among the features that would not be manufacturable by conventional means: equally-centred runner bellmouths, compact and complex runner geometry, and seamlessly integrated injector seats.
As the UVic Formula Motorsport team puts it: “With laser sintering technology and Windform® TOP-LINE composite materials from CRP USA at the fingertips of our engineering team, we are able to design complex parts that previously would not have been possible.”
